User Guides

Using LinearDesign for Optimization Initialization

LinearDesign[1] optimizes mRNA CDS in terms of MFE and CAI values. You can use --lineardesign option to start VaxPress optimization from LinearDesign output sequence. When using this option, LinearDesign is invoked inside VaxPress to initialize the input sequence. Subsequent VaxPress optimizations further improves the sequence for the additional features like secondary structures near the start codon, uridine count, in-cell stability, tandem repeats, and local GC content.

The --lineardesign option needs a LAMBDA(λ) parameter, which influences the balance between MFE and CAI. Values between 0.5 and 4 are usually suitable starting points. For insights into the λ value’s implications, consult Zhang et al. (2023) [1].

Keep in mind that LinearDesign should be installed separately following instructions in the LinearDesign GitHub page. Path to the installed directory of LinearDesign should be provided using the --lineardesign-dir option. This option can be omitted in subsequent uses.

Note that sequences straight from LinearDesign often have suboptimal structures around the start codon. Under the high mutation rate at the beginning, this causes the main sequence body to lose its optimal MFE structure. The -—conservative-start option tackles this by focusing on the start codon region before optimizing the rest.

Also, given that LinearDesign’s outputs are already quite optimal, the --initial-mutation-rate can be reduced to 0.01. This ensures efficient optimization as there’s a minimal likelihood that a better mutation would emerge with a higher mutation rate.

# Running VaxPress with LinearDesign
vaxpress -i spike.fa -o results-spike --processes 36 \
     --iterations 500 --lineardesign 1.0 \
     --lineardesign-dir /path/to/LinearDesign \
     --conservative-start 10 --initial-mutation-rate 0.01

Note

Figures below demonstrates the effect of initial mutation rate on optimization process when the starting sequence is optimized with LinearDesign (λ = 0).

When initial mutation rate is set as a default value (0.1), survivor sequence largely remains unchanged for initial several hundred iterations, until the mutation rate is sufficiently decreased by winddown.

When initial mutation rate is adjusted to 0.01, the sequence can escape from initial MFE-optimized sequence earlier to be further optimized based on the given VaxPress evaluation metrics.

To see the list of all options related to LinearDesign, see LinearDesign-related Options.

Tuning Optimization Parameters

Number of Iterations

Number of iterations is a key parameter for genetic algorithm. For a comprehensize optimization, high enough iteration number is needed. But unnecessarily high number of iteration higher than certain threshold occurs automatic shut down.

To have an output sequence sufficiently converged, at least 500 iterations are recommended. It is recommended to increase the number of iterations if the optimization process ends before sufficient convergence.

Below is an example process with 1500 iterations on CDS sequence with the length of 1701 bp.

• Fitness changes over the iterations from report.html



Two dotted lines on the plot are the points which the number of iterations are 500 and 1000 each. 500 and 1000 iterations points are showing possibility of further improvement since fitness score is not plateau and mutation rate can decrease more. But near 1500 iterations, fitness and mutation rate are less likely to imrpove more. Thus, in this case, it is proper to say that near 1500 iterations is okay to get optimal result.

Also, keep in mind that optimization process can halt before the specified number of iterations if the fitness score doesn’t improve for several consecutive cycles. In detail, if E(number of mutation) is equal to 0.2 because of decrease in mutation rate.

Number of Population

Number of population is one of the key parameters for genetic algorithm. Higher population number allows wider search per each iteration, but too high value will lead to unnecessary use of time and computational resources. To adjust it, run VaxPress with random population numbers, and find proper value that makes no further difference.

• Fitness changes over the iterations from report.html

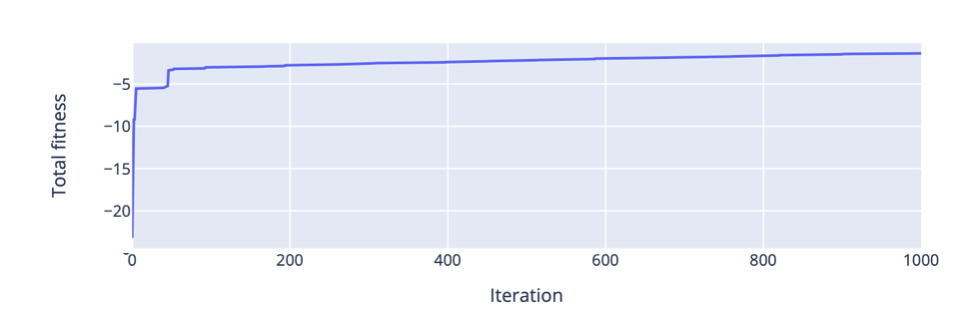

  1. 10 populations



  2. 100 populations

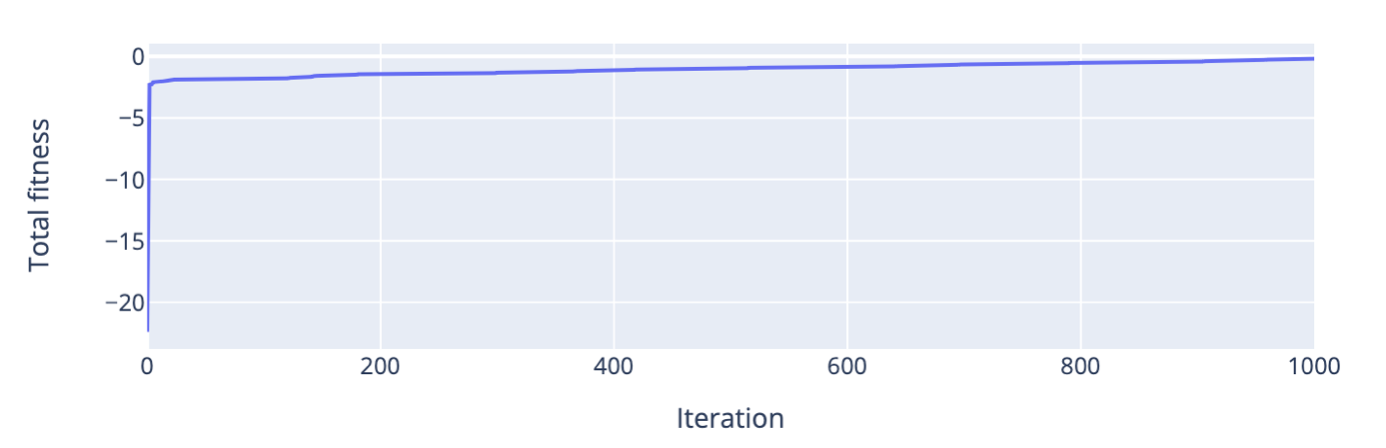

  3. 500 populations



Near 100 is proper since there are no differences for the value that fitness curve converges after 100.

Note

CAUTION

These processes are influenced by other options i.e. iteration number, survivor number… All of the parameters above except the population number is set to the default which is REALLY small. Other parameters can be adjusted as well based on your own purpose.

Initial Mutation Rate

To accomplish optimization successfully, certain amount of mutation rate is necessory.

When running VaxPress without LinearDesign initialization, using default value for initial mutation rate (0.1) won’t be a problem since the evolution starts from the highly unoptimized sequence. When initial mutation rate is high, the program will search through the sequence space more widely, but more iterations might be needed for convergence. If you set the initial mutation rate too low, VaxPress might lose the opportunity to find a better-scoring sequence by chance.

But if you initialize sequence with LinearDesign before VaxPress optimization, it is recommended to lower the initial mutation rate. Since the output sequence from LinearDesign is already highly optimized, there is a minimal likelihood of more competitive populations to emerge under higher mutation rate.

Below is the example for adjusting initial mutation rate for the 2 cases.

Case 1: LinearDesign is NOT applied

• Fitness changes over the iterations from report.html

  1. initial mutation rate = 0.005



  2. initial mutation rate = 0.01



  3. initial mutation rate = 0.1

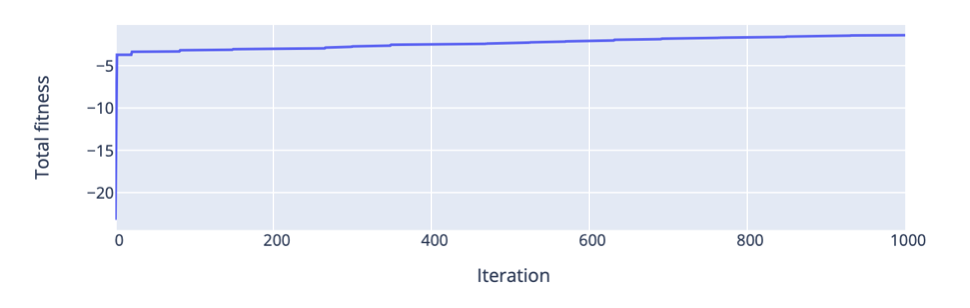

  4. initial mutation rate = 0.3



This is VaxPress optimization result starting from the wild-type CDS sequence of Influenza virus. In this case, the final fitness score at convergence is not affected by initial mutation rate. However, keep in mind that lower initial mutation rate might result in the optimization outcome to be stuck in the local optimum, although it generally allows the faster convergence.

Case 2: LinearDesign is applied

• Fitness changes over the iterations from report.html

  1. initial mutation rate = 0.005



  2. initial mutation rate = 0.01



  3. initial mutation rate = 0.1



  4. initial mutation rate = 0.3



When the initial mutation rate is set high (0.1, 0.3), the fitness score starts to increase at later iteration cycles. Also, when the initial mutation rate is low (0.01, 0.005), the lower the initial mutation rate, the faster improvement is.

Thus, low initial mutation rate is recommended when the initial sequence is already optimized with LinearDesign. After setting iteration number, you might try initial mutation rate under 0.01 and observe the fitness score to set proper rate.

Weights of the Fitness Functions

The way of adjusting weights of fitness functions depends on the user’s own purpose. To adjust the weights properly, you might refer to 4 steps in the example below.

Note

Default weights of the fitness functions which are used in example sample are as follows:

• MFE: 3.0

• U count: 3.0

• loop weight: 1.5

1. Check the naive optimization process

   Firstly, just run VaxPress with deafult weights.

   # command line
   vaxpress -i input/fastaFile/directory/example.fa -o output/directory/ --iterations 50 -p 64


   • Metrics’ trend from report.html



   Elevation of MFE value is observed. Since MFE value represents overall stability of structure, you might want to make it lower.

2. Adjusting MFE weight (--mfe-weight)

   Raise weight of MFE from defalut to 7.0

   # command line
   vaxpress -i ... -o ... --iterations 50 --mfe-weight 7 -p 64

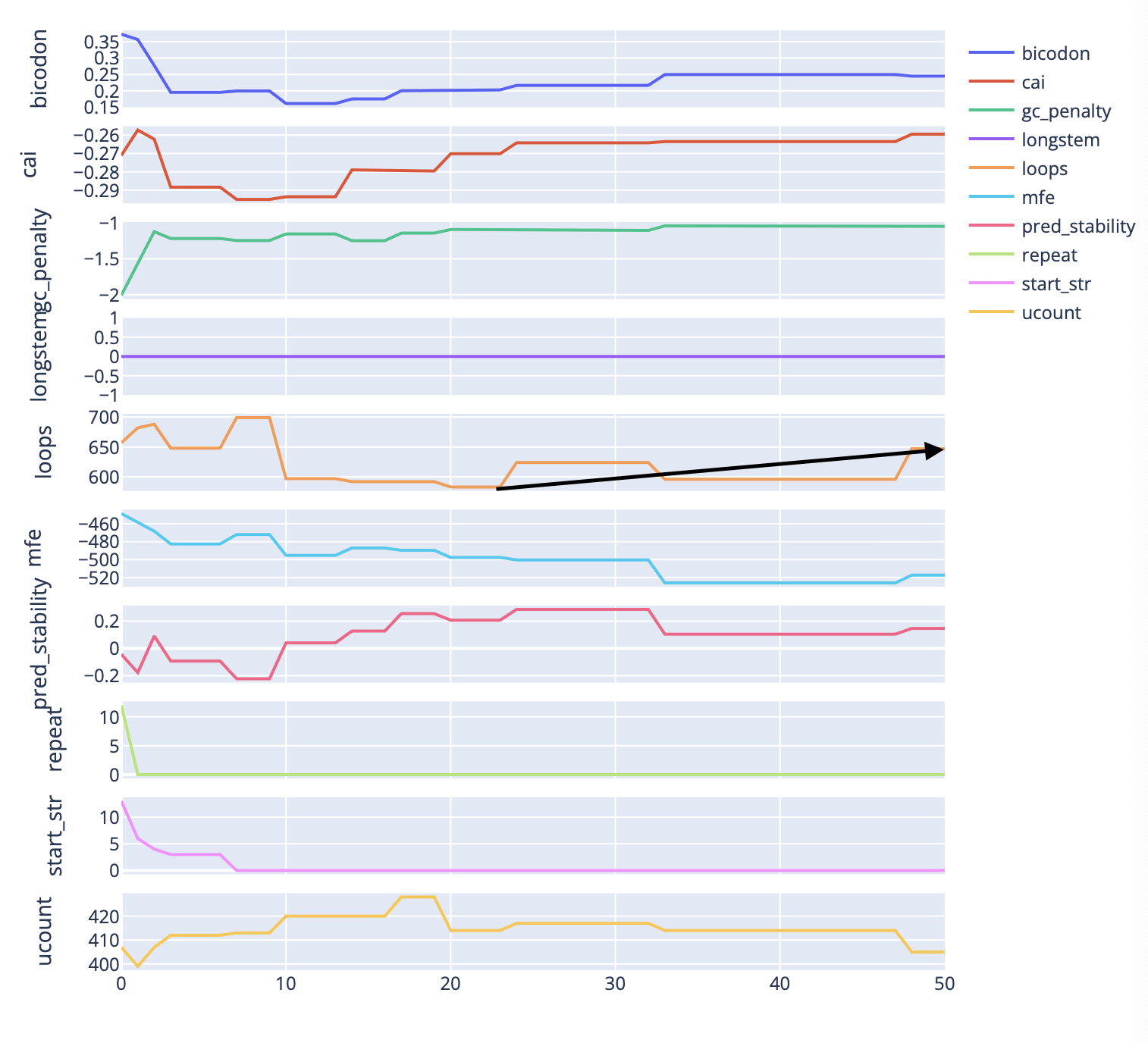

   • Metrics’ trend from report.html



   Now loops has increased, and you might want to keep the loops from increasing.

3. Adjusting loop weight (--loop-weight)

   Raise weight of loop from defalut to 7.0

   # command line
   vaxpress -i ... -o ... --iterations 50 --mfe-weight 7 --loop-weight 7 -p 64


   • Metrics’ Trend from report.html



   Now we have problem with the Uridine Count. Let’s compromise between loops and ucount.

4. Compromising between loops and ucount

   Raise weight of Ucount weight to 5 and lower loop weight to 5

   # command line
   vaxpress -i ... -o ... --iterations 50 --mfe-weight 7 --loop-weight 5 --ucount-weight 5 -p 64


   • Metrics’ Trend from report.html



   Now loops and ucount are improved, but there is slight elevation of MFE. So now there might be some possible choices.

   1. Take charge of slight elevation of MFE.

   2. Raise weight of MFE more.

   By doing the second choice, there might be several deteriorations of some other metrics. You can keep adjusting them just like the above process. How to balance the weights among the various fitness functions depends on your own purpose for using VaxPress.

Removing Tandem Repeats from LindearDesign Output

Overall, VaxPress can consist a workflow starting from LinearDesign (See Using LinearDesign for Optimization Initialization section for detailed information about the related options and parameters). In this usage, VaxPress refines the MFE- or CAI-optimized sequence from LinearDesign on the other factors not considered in LinearDesign.

For example, VaxPress can remove tandem repeats from the LinearDesign output.

mRNA manufacturing is a significant process of mRNA vaccine development. However, the presence of repeated sequences cause severe difficulties in the manufacturing process. As LinearDesign algorithm doesn’t consider repeats, the output sequence from LinearDesign may contain repeated sequences. Especially, when the lambda parameter is set high(which means high weight on CAI), the occurence of tandem repeat is highly probable since the codon with high CAI score is always favored.

# Example command to get LinearDesign-VaxPress optimized sequence
# with tandem repeats removed
# MFE weight is set high to preserve the LinearDesign-optimized secondary structure
# High weight set on Tandem Repeats, while CAI weight is set minimal.
vaxpress -i spike.fa -o results-spike --processes 36 \
     --iterations 500 --lineardesign 1.0 \
     --lineardesign-dir /path/to/LinearDesign \
     --conservative-start 10 --initial-mutation-rate 0.01 \
     --default-off \
     --mfe-weight 10 --repeats-weight 10 --cai-weight 1 --gc-weight 3 \
     --start-str-weight 1

Using VaxPress as a User-Friendly Interface to LinearDesign

Using --conservative-start N option only generates mutations in the start codon region during the initial N number of iterations, leaving the rest of the sequence as it is. Therefore, by assigning the same parameter for --conservative-start and --iterations options, VaxPress can be used as a convenient front-end interface for LinearDesign optimization.

Note

CAUTION

This use case explains running LinearDesign optimization alone through VaxPress. If you’re going to run VaxPress optimization as well, you can go directly to A Tour Through VaxPress, Step 3. Information about using LinearDesign for VaxPress optimization initialization is also available in Using LinearDesign for Optimization Initialization section.

Using LinearDesign through VaxPress interface offers several advantages:

• LinearDesign can be run without Python Version 2 dependency in VaxPress.

• In addition to the optimized sequence output by LinearDesign, VaxPress offers a comprehensive output report that is helpful to understand the optimized sequence. Detailed information is provided, such as the visualization of secondary structure and the scores of various evaluation metrics.

• When using LinearDesign alone, several N-terminal amino acids should be manually removed before running the optimization to prevent folded structures in the start codon region. This process is run automatically in VaxPress with --lineardesign-omit-start (default = 5) option.

• While LinearDesign only accepts protein sequence, mRNA sequence can be directly used as an input in VaxPress.

# Example usage of VaxPress as an interface to LinearDesign
vaxpress -i spike.fa -o results-spike --processes 36 \
        --iterations 10 --lineardesign 1.0 \
        --conservative-start 10 --initial-mutation-rate 0.01 \
        --lineardesign-dir /path/to/LinearDesign \

Results will be displayed in report.html. In this case, differences between “Initial” and “Optimized” sequence should be minimal, since the mutations were only allowed at the start codon region.

Evaluating the given sequence

By setting --iterations to 0, VaxPress provides a convenient method to just evaluate a given sequence with no further optimization. Output report will be generated containing all the results from VaxPress’s scoring functions, including the visualization of secondary structure.

Using preset values

VaxPress stores its configuration information of each run in parameters.json file, which is generated inside the output directory. With --preset option, you can use preset values in this file as the configuration for the next optimization. This option allows convenient preservation of the arguments applied in particular run, which later can be used to reproduce the optimization, to share with other people, etc.

Example command to use preset values:

vaxpress -i {path_to_input.fa} \
         -o {path_to_output_directory} \
         --preset {path_to_parameters.json}

If some of the options are specified along with --preset, the specified arguments including addons will override the preset values. For example, if you want to generate 10 replicates with certain optimization parameters, only --seed option is needed to be changed. In this case, you can load preset values with --preset option and override only --seed argument to simplify the command.

# Simplified command line with --preset option
vaxpress -i {path_to_input.fa} \
         -o {path_to_output_directory} \
         --preset {path_to_parameters.json} \
         --seed {NUMBER}

Modifying the default configuration

Besides using --preset option, default settings of VaxPress can also be modified.

When you install VaxPress, .config/vaxpress/config.json file is generated inside the user’s home directory. You can find the location of this file with the command below.

python -c "import os; print(os.path.join(os.path.expanduser('~'), '.config', 'vaxpress', 'config.json'))"

As a default, only --lineardesign-dir option is automatically saved to this config.json among all the arguments you have passed. If VaxPress had run with --lineardesign-dir option, config.json would be written as below.

{
  "lineardesign_dir": "/path/to/LinearDesign/"
}

This configuration file can be edited manually to change the default settings of VaxPress, such as default weights of each scoring function. For example, to turn off iCodon-Predicted Stability function as default, modify config.json like the example below.

{
  "lineardesign_dir": "/path/to/LinearDesign/",
  "iCodon_weight": 0
}

As shown in this example, ‘-’ in the argument name should be replaced with ‘_’ in configuration. After this modification, --iCodon-weight option will be set to 0 as default.

Adding a custom scoring function

You can extend VaxPress optimization algorithm by adding custom scoring functions that contributes to the fitness evaluation of each sequence. Example codes showing templates for additional scoring functions are in VaxPress/examples directory. After preparing a python code for the new scoring function, you can add it to the optimization process with two ways:

Using a command line option

Pass the path to the Python source file for the scoring function as an argument of -—addon option. If there are multiple scoring functions to add, -—addon can be specified multiple times.

# Example command to add homotrimer count to the fitness evaluation

vaxpress -i ./testseq/vegfa.fa\
         -o ../test_run\
         --iterations 500\
         --lineardesign 1\
         --lineardesign-dir ../LinearDesign\
         --conservative-start 10:7\
                     --addon ./VaxPress/examples/count_homotrimers.py

Adding source files to the scoring function directory

If you’re going to use the custom scoring function repeatedly, writing command line option every time can be cumbersome. In this case, source file of the custom function can be copied to the directory where the original scoring functions of VaxPress are installed. To do this, first you will need to find where the vaxpress scoring modules are installed. It can be done with the command below.

# Prints the path to the directory that contains VaxPress scoring functions.
python -c "import vaxpress.scoring as s; print(s.__path__)"

# Copy your source file to the directory found above.
cp {path/to/your/scoring_function.py} {path/to/vaxpress/scoring_functions}

In this way, you can add your own scoring function to VaxPress optimization without specifying the command line option every time.

References

[1] (1,2)

Zhang, He, et al. “Algorithm for optimized mRNA design improves stability and immunogenicity.” Nature (2023): 1-3.
